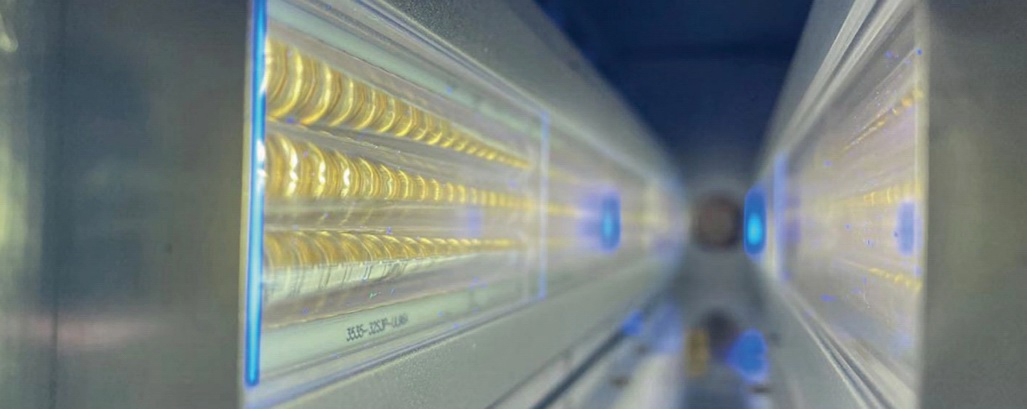

UV LED SYSTEM
In the past few decades, traditional UV lamps have been used for ink curing in offset printing machines. During the production process, manufacturers also frequently encountered material deformation, yellowing of the material, high power consumption, and easy failure of the lamp tube. There are many issues awaiting high-temperature safety hazards. With the requirements of environmental protection and the development of technology, UV-LED technology has many advantages over traditional methods. UV-LED technology has no heat radiation, low energy consumption, simple installation and space saving, and use Long life, can effectively reduce customer use and maintenance costs.

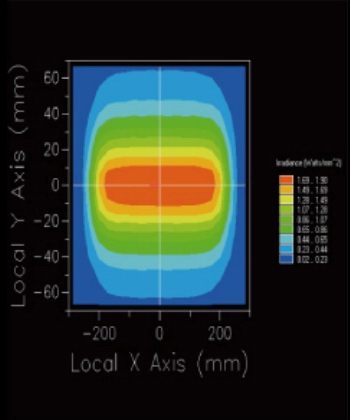

Without micro-optics processing, the light spot is about 40mm wide and the astigmatism is serious.
|

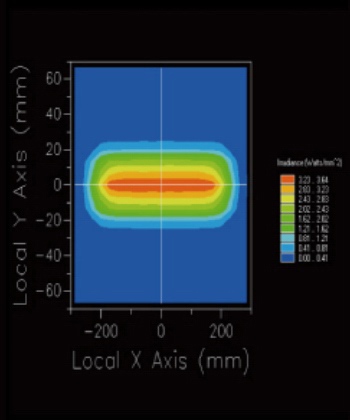

Add micro-optical treatment, the beam spot width is about 10mm, to ensure that the optical fiber is in the curing belt.
|
Very high constant UV light output;
Produce more UV light output on the smaller possible area while maintaining a lower heat output.
Fiber optic cable UV LED curing system
|
|
---|---|
Peak wavelength
|
390±5nm |
Light intensity
|
>10w / c㎡ |
UV light power
|
211w |
Radiation window
|
800 x 15 |
Power consumption
|
2800 |
Dimensions
|
980 x 186 x 170 |
Control signal
|
0~10V Analog or RS 485 MODBUS |
UV LED curing system for offset printing machine
|
|
---|---|
Peak wavelength
|
385
|
Light intensity
|
20
|
UV light power
|
211
|
Radiation window
|
1020
|
Power consumption
|
8000
|
Dimensions
|
1545 x 140 x 140
|
Control signal
|
0~10V Analog or RS 485 MODBUS
|
