Energy Online Monitoring System

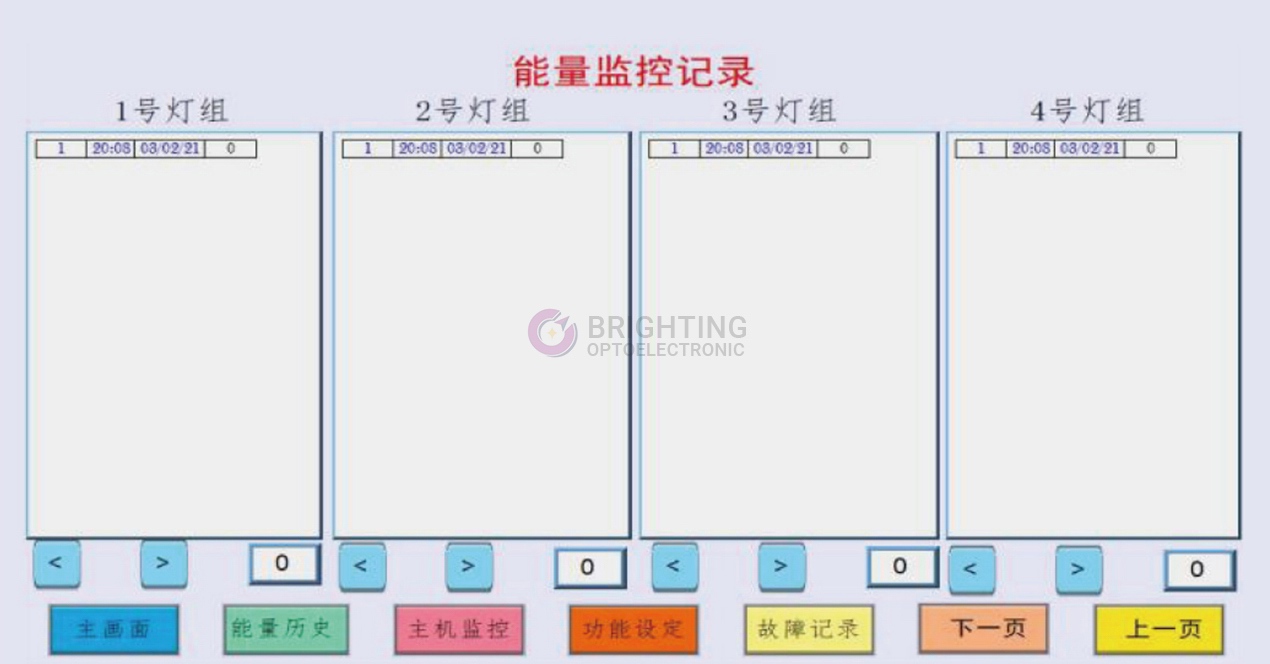

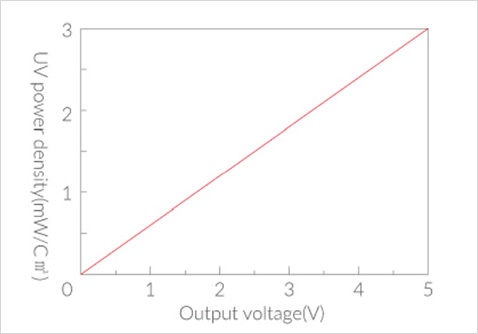

In order to facilitate customers to independently install a UV energy monitoring system, the module is small in size and integrates a UV sensor, amplifying circuit and analog signal interface. The module provides an analog voltage output signal, and the output value is proportional to the intensity of ultraviolet light irradiation. The external multi-channel controller can realize the controller 1 drag 20 probes, and collect data to the display screen.

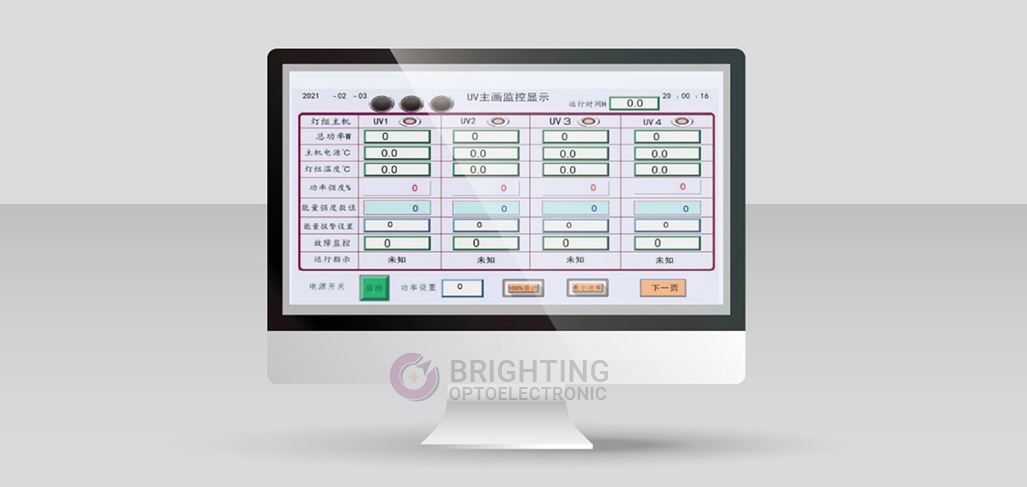

- Real-time monitoring of output power, temperature, independent control of each output and alarm feedback
- Real-time detection of UV system light intensity and detection of quartz plate or tube cleanliness
System Configuration
- Response band: 300~450mm
- Can be retrofitted to UV lamps or LED equipment
- Quick-plug connector for easy use
- Can 485 communication output signal
- Real-time intelligent monitoring communication can be realized
| Technical Parameters | |
|---|---|
| Module size | 60x38x20mm |
| Operating Voltage | 5V |
| Ground Voltage | 60V |
| Analog Signal Output | 0~5V |
| * Specifications can be customized | |
Scope of Application
- UV curing system for fiber drawing, coloring, banding, crosslinking, etc.;
- UV systems for various printing equipment;
- Installation of UV curing system for wood paint;
- Glue curing system for electronic optical parts;
- Film UV coating system.
