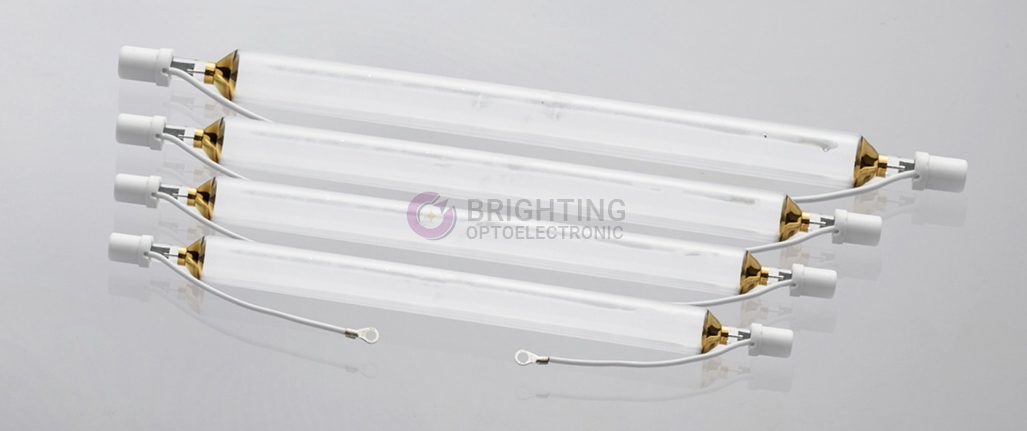

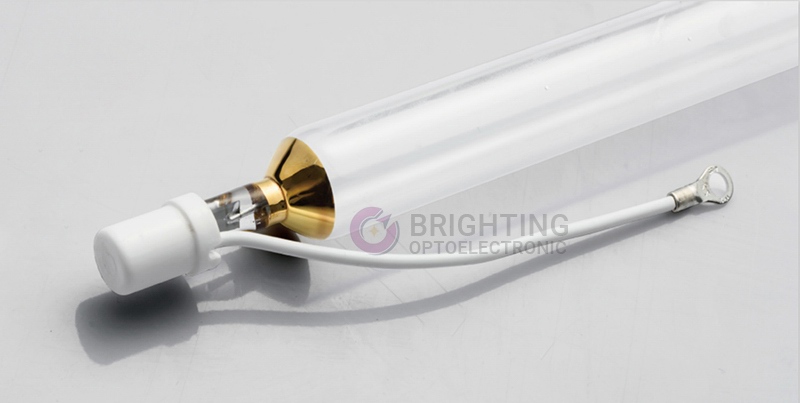

Gallium Lamp

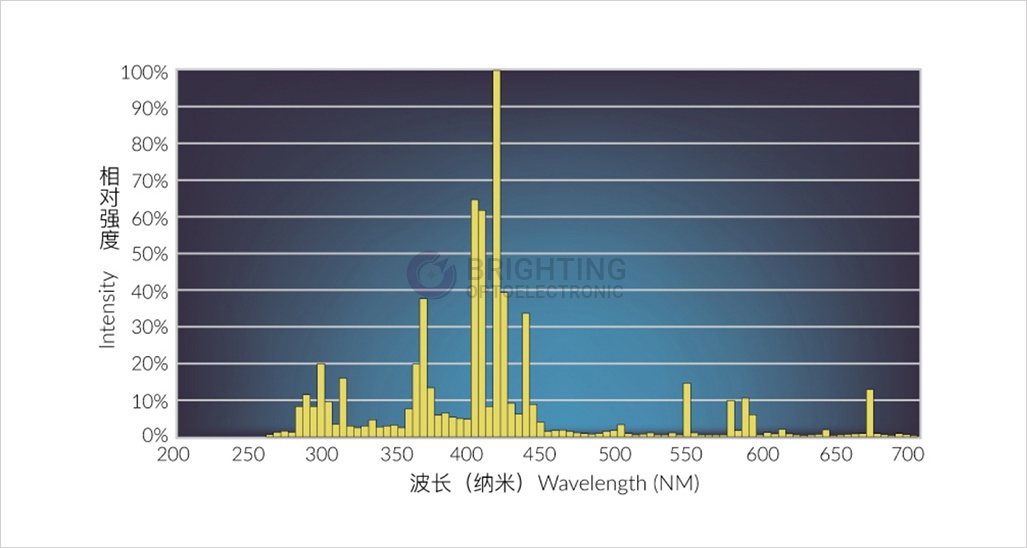

It is a high-intensity gas discharge lamp, which belongs to the type of metal halide lamp. There is strong line spectrum radiation in the wavelength range of 350nm~450nm, and its main peak wavelength is 403nm~417nm gallium resonant radiation spectrum.
| Technical Parameters | |
|---|---|
| Use Power | 400~24000 watts |
| Electrode Spacing | 8~150 cms |
| Operating Voltage | 90~2800 Volts |
| Working current | 5~35 Amps |
| Diameter Size | Φ 9~30 mm |
| * Specifications can be customized | |
Scope of Application
This lamp is widely used in PS plate making, photolithography resin plate and printed circuit board solder mask dry film and liquid resin and other photosensitive materials such as exposure and deep curing of wood paint.
